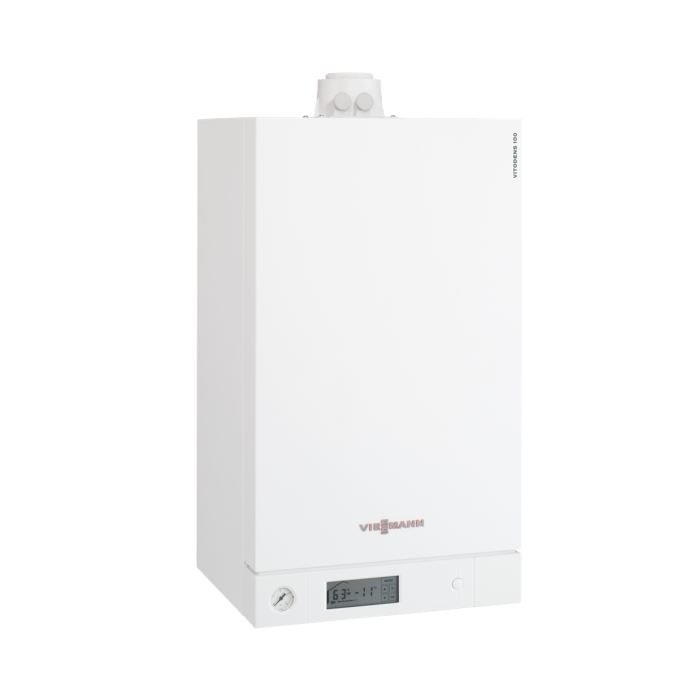

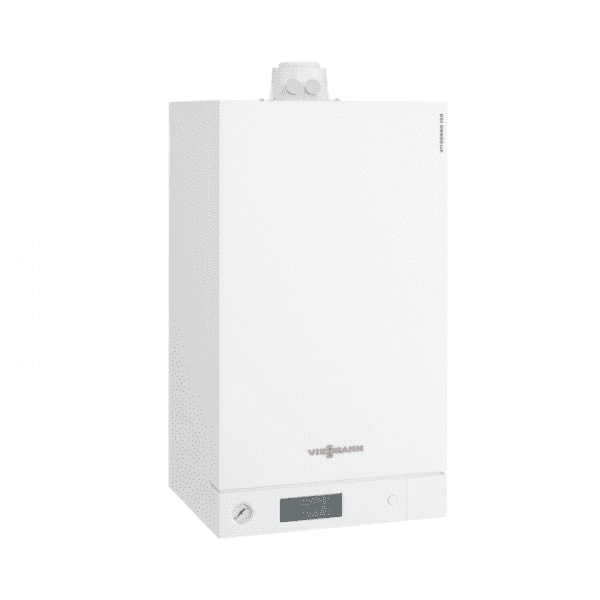

Viessmann Vitodens 100-W System Boiler

Wall mounted gas fired condensing boiler

  • For natural gas and LPG (conversion kits available)
  • SEDBUK 2009 seasonal efficiency 89.5%
  • Ideal as a replacement for older appliances due to low installed height and installation space for adaptation to existing systems
  • Low operating noise through extended modulation ratio: up to 1:6
  • Modulating stainless steel cylinder burner
  • User friendly control via backlit LCD touchscreen (option for control via room thermostats)
  • Straightforward access from the front, so no need to leave space at side for maintenance
  • Also approved for multiple connections to stacks in multi storey buildings

  • Combined PRV and condensate connection, for fast and simple installation



Viessmann Vitodens 100-W System Boiler with their compact dimensions, low weight and quiet operation will integrate effortlessly into any living space. The modulating ratio over the entire output range is up to 1:6. This high ratio makes these boilers particularly suitable for use in small apartments and well insulated buildings. The user benefits from fewer appliance start-ups and therefore less operating noise. Because a lower level of stress is placed upon the appliance, the service life of components is consequently extended. As is the case with all Viessmann gas condensing boilers, the Vitodens 100-W is equipped with stainless steel Inox-Radial heat exchangers. This technology brings with it an extremely high efficiency rate of 98 percent and exceptionally reliable and efficient operation during its long service life. Viessmann guarantees the Inox-Radial heat exchanger for ten years against leaks resulting from corrosion. The Vitodens 100-W wall mounted gas condensing boilers are controlled by the new, backlit LCD touchscreen, which makes it easy to use and read in dark environments.

Additional information


NG & LPG, CH Output 4.7-19kW, Height 700mm, Width 400mm, Depth 350mm


NG & LPG, CH Output 4.7-26kW, Height 700mm, Width 400mm, Depth 350mm


NG & LPG, CH Output 5.8-30kW, Height 700mm, Width 400mm, Depth 350mm


NG & LPG, CH Output 5.8-35kW, Height 700mm, Width 400mm, Depth 350mm
